Modified High-Manganese Wear Steel Castings

Modified alloy high-manganese steel wear-resistant castings are a new type of product optimized through the addition of alloying elements—such as chromium, molybdenum, and nickel—to the traditional high-manganese steel base. Compared to standard high-manganese steel products, this modified version offers superior strength, enhanced wear resistance, and a more consistent service life.

Utilizing advanced casting processes and heat treatment technologies, these castings feature a highly uniform and dense internal microstructure, ensuring excellent overall performance in high-impact and high-load operating environments. While retaining the exceptional toughness characteristic of high-manganese steel, the product offers improved resistance to abrasive wear, making it suitable for long-term, continuous operation under demanding conditions.

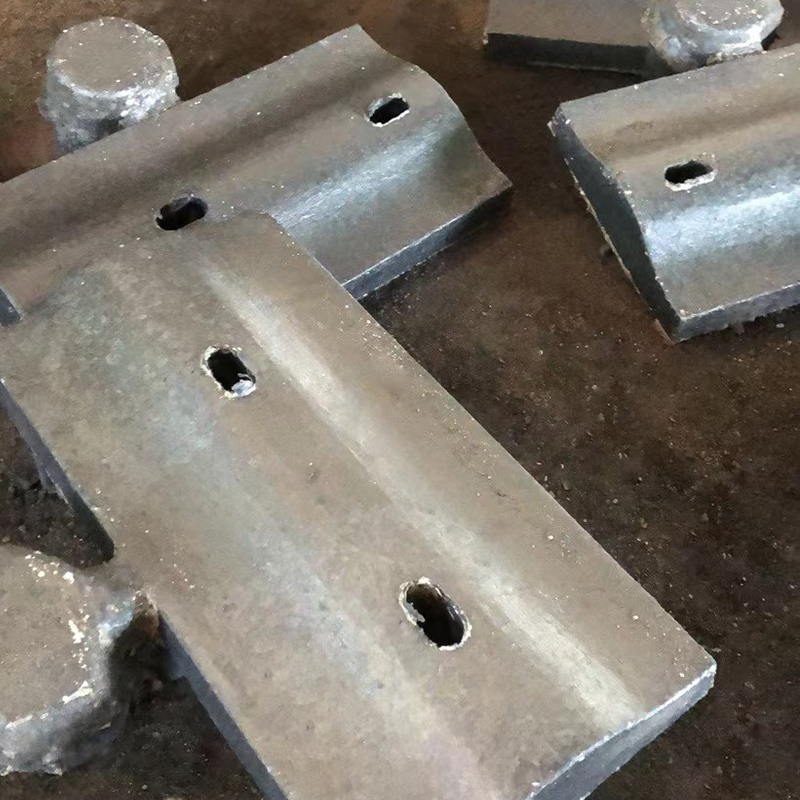

These modified high-manganese steel castings are widely used for wear-prone components such as crusher parts, mill liners, impact plates, hammer heads, and excavator bucket teeth, effectively reducing equipment maintenance frequency and boosting production efficiency.

Contact Us Contact Us
PREV：Mining Machinery Standard High-Manganese Steel Castings NEXT：High-Impact Wear Resistance Ultra-High Manganese Steel Castings
  • Specifications
  • Description
  • Contact Us
NO. Kinds Brand number C Si Mn Cr Mo Ni Cu S P AK (J/cm²) HRC σb (MPa) Metallographic Structure
1 Medium Carbon Medium Chromium I ZG30Cr5MoRE 0.25~0.35 0.3~1.0 0.3~1.0 4.5~5.5 0.2~1.0 — — ≤0.045 ≤0.045 ≥25 ≥45 — M+B+C
2 Medium Carbon Medium Chromium II ZG40Cr5MoRE 0.35~0.45 0.3~1.0 0.3~1.0 4.5~5.5 0.2~1.0 0.1~0.4 ≤0.1 ≤0.045 ≤0.045 ≥20 ≥48 — M+B+C
3 Medium Carbon Low Alloy Steel ZG40Cr5MoNiRE 0.3~0.5 1.1~1.6 0.3~1.0 1.2~1.8 0.2~0.6 1.4~1.8 — ≤0.04 ≤0.04 ≥30 ≥40 — M+F
4 Low Carbon High Alloy Steel ZG20Cr9NiMo 0.15~0.35 ≤1.0 0.3~1.0 8~10 0.4~0.8 0.5~1.0 — ≤0.045 ≤0.045 ≥40 ≥40 — M+C
5 Cr-Ni-Mo Alloy Steel ZG45Cr3NiMoMn-RE 0.4~0.50 0.3~0.8 0.6~1.2 2.0~3.2 0.3~0.5 — — ≤0.04 ≤0.04 ≥20 ≥50 — M+C
6 90 Chromium Alloy Steel ZG90Cr6MoMn 0.85~0.95 0.4~0.8 0.4~0.8 5~8 0.2~0.4 — — ≤0.045 ≤0.045 ≥7 ≥50 — M+C
7 Conventional High Manganese Steel ZGMn13 1.1~1.4 0.3~1.0 11~14 — — — — ≤0.06 ≤0.10 ≥147 HB≥229 637 A+C
8 Modified High Manganese Steel ZGMn13Cr2MoVTiNbRe 1.1~1.3 0.3~1.0 11~14 1.8~2.5 — Ti:0.2~0.4 — ≤0.06 ≤0.10 ≥80 ≥240 — A+C
9 Super High Manganese Steel ZGMn17Cr2 1.1~1.4 0.3~1.0 16~19 5~2.5 — 4~6 — ≤0.06 ≤0.10 ≥50 ≥260 — A+C
10 Heat Resistant Steel ZG20Cr26Ni5 ≤0.20 ≤0.20 ≤0.20 1.0~2.0 ≤0.5 11~14 — ≤0.04 ≤0.04 — — 590 A+F
11 HH ZG20Cr26Ni12 0.2~0.5 ≤0.20 ≤0.20 24~28 ≤0.5 19~22 0~1.2 ≤0.045 ≤0.045 — — 490 A+F
12 HK ZG40Cr25Ni20 0.35~0.45 ≤0.20 ≤0.20 24~28 ≤0.5 0~1.0 0.8~1.2 ≤0.045 ≤0.045 — — 440 A+F
13 High Chromium Cast Iron KmTBCr15Mo2 2~2.8 ≤1.2 0.5~1.0 23~27 0.2~2.5 0~1.5 0~2.0 ≤0.06 ≤0.10 ≥53 — — M+A+C
14 High Chromium Cast Iron KmTBCr20Mo2 2~3.0 ≤1.2 0.5~1.0 13~18 1.5~2.5 0~1.5 1~2.0 ≤0.06 ≤0.10 ≥3 ≥58 — M+A+C
15 High Chromium Cast Iron KmTBCr26 2~3.0 ≤1.2 0.5~1.0 23~28 0.1~1.0 0~1.0 0~1.0 ≤0.06 ≤0.10 ≥55 — — M+A+C
16 High Chromium Cast Steel ZGCr12SiMn-GT 1.0~2.0 ≤1.2 0.5~2.0 12~14 0.1~1.0 0~1.0 0~1.0 ≤0.06 ≤0.10 ≥3.2 ≥55 — M+A+C
17 High Chromium Cast Steel ZGCr15SiMn-GT 1.0~2.0 ≤1.2 0.5~2.0 15~17 0.1~1.0 — — ≤0.06 ≤0.10 ≥3.5 ≥55 — M+A+C

Application Areas:
Mining equipment, aggregate production lines, the cement industry, metallurgical equipment, and construction machinery.
