Alloyed High-Manganese Steel Lining Board Crusher Impact Plate

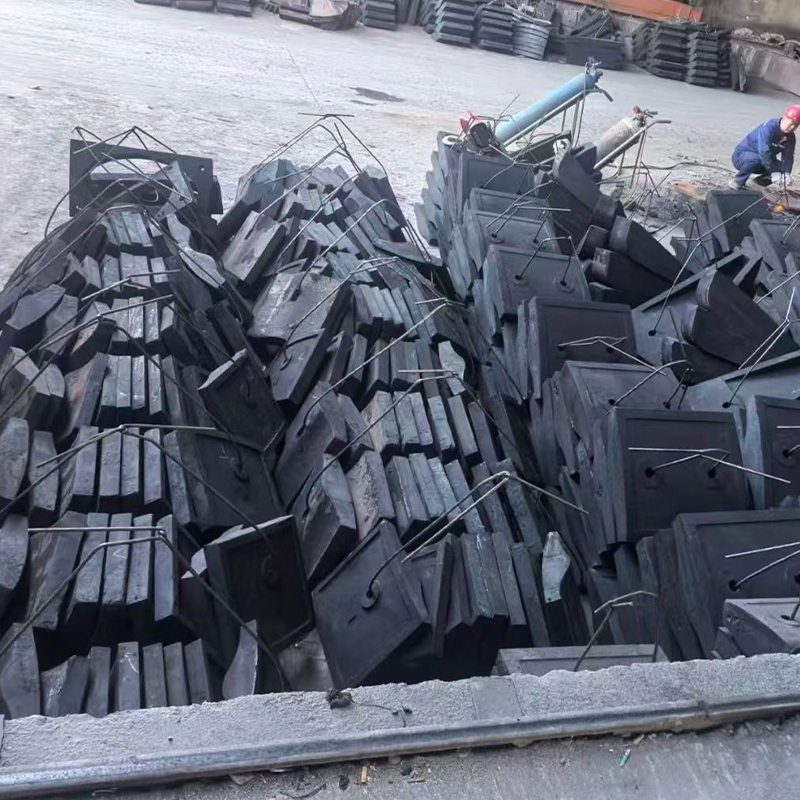

Alloyed high-manganese steel Lining Board crusher impact plate are high-performance, wear-resistant components designed for impact crushers. Manufactured from high-manganese steel reinforced with alloying elements, these plates feature optimized hardness, toughness, and impact resistance. Engineered to withstand high-speed material impacts and repetitive abrasion, they are crucial for ensuring the stable operation of crushing equipment.

In industries such as mining, aggregate production, cement manufacturing, and construction waste processing, crushers frequently handle hard materials like granite, basalt, limestone, and various ores. Consequently, impact plates must endure intense impact forces and abrasive wear. The alloyed high-manganese steel material offers excellent impact resistance, maintaining structural integrity under severe conditions, while surface hardening treatments extend its wear life.

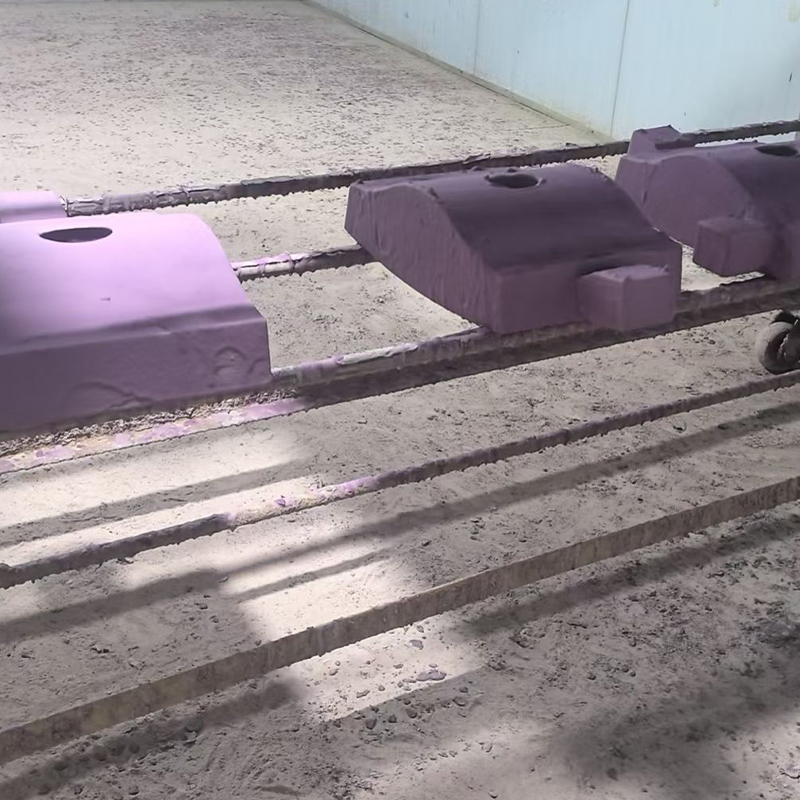

Produced using advanced casting technology, these components can be customized for various impact crusher models and include impact plates, side liners, and other wear-resistant liners.

Contact Us Contact Us
PREV：High-Manganese Steel Lining Board For Wet Mining Mills NEXT：No next product
  • Specifications
  • Description
  • Contact Us
Material Name Impact Toughness Service Life Hardness Impact Toughness
High-toughness High-Cr Cast Iron Shell liner, head liner in ≤Φ5m mill, vertical mill liner ≥7 Years HRC≥60 8–10 J/cm²
High-Cr Cast Iron I ≥6 Years HRC≥60 7–9 J/cm²
High-Cr Cast Iron II Shell liner, head liner in ≤Φ4.2m mill ≥5 Years HRC≥58 6–8 J/cm²
High-Cr Cast Steel ≥4 Years HRC≥55 6–9 J/cm²
Cr–Mo–Ni Alloy Steel Shell liner, head liner, diaphragm, grid plate in ≤ Φ5m mill ≥4 Years HRC≥52 ≥40 J/cm²
Medium-carbon multi-component Alloy Steel ≥3 Years HRC≥50 ≥30 J/cm²
Medium-Cr Alloy Steel ≥2 Years HRC≥48 ≥20 J/cm²
Low Alloy Steel ≥1.5 Years HRC≥45 ≥40 J/cm²
Low Carbon High Alloy Steel Mine wet mill shell liner, head liner, grid plate ≥1 Year HRC≥46 ≥50 J/cm²
Blind plate of drying chamber in large-sized raw mill ≥3 Years
High-Mn Steel (Mn13) Mine wet mill shell liner, head liner, grid plate ≥6 months HB≥200 ≥147 J/cm²
Alloyed High-Mn Steel Impact plate, grid plate, jaw plate of all kinds of crushers ≥1 Year HB≥220 ≥120 J/cm²

Applications:
Impact crushers;
Ore crushing production lines;
Sand and aggregate production lines;
Cement production lines.
